2500W Ultrasonic Welding Set 20kHz Ultrasonic Welding System For
Plastic Welding
Re-organized and incorporated in 2015 in Shanghai, K&M
Technologies Ltd is a one-stop solution provider in the plastic
welding business, especially in ultrasonic plastic welding,
ultrasonic non-woven fabric sealing, and cutting, hot plate
welding, water filter production lines........
We have the best sources for the design of the equipment based on
over 10 years' experience of the main staff in this industry.
This is the 20KHz digital ultrasonic welding set, with the digital
ultrasonic generator, which has four working modes (time,
continuous, grounding, energy), and various protection functions
such as overload protection, voltage protection, transducer voltage
protection, and horn impedance protection. The ultrasonic welding
set uses the transducer(aluminum alloy for the convertor, stainless
steel for the booster) with strong and stable output, also can be
customized according to our customers' different needs.
Technical Parameters:
Generator
| Dimension | Length 400mm×Width 195mm×Height 98mm |
| Net weight Of Main Body | 7 Kg |
| Frequency Range | 19.40-20.20kHz |
| Output Power | 2500W |
| Voltage | 220V+-10% |
| Welding Mode | Pause welding/continuous Welding |
| Type | horizontal and verticle type optional. |
| Function | Real-time frequency automatic tracking function |
| Amplitude compensation |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection |
| Transducer voltage protection |
| Welding Time | adjustable |
| Working Frequency (options) | 15KHz/20KHz/28KHz/30KHZ/35KHz/ |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
Transducer
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument
such as a resistance characteristic analyzer |
| Capacitance | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Maximum Power | P:2500W, Machine manufacturers may have different regulations for
the nominal power of machines for different purposes.
In other words, the same transducer may have different nominal
power for different machines.
Therefore, when choosing an ultrasonic transducer, you can only
refer to its maximum power |
| Working Mode | Pause/continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster. |
| Net weight of the main body | 2.6KG |
Horn
| Dimension | Length 110mm ×Width 20mm |
| Frequency | 20KHZ |
| Net weight of the main body | 3.1KG |
| Material | steel |
Flange
| Frequency | 20KHZ |
| Inner Diameter | 33mm |
| External Diameter | 106mm |
| Thickness | 30mm |
| Material | Steel |
| Net weight of the main body | 1.1KG |
Features:
* High performance
* Vibrationless performance
* Low power consumption
* Auto Tuning Generator Box
* Economic It does not need screws, glue, and chemical.
* Low Cost and reduce labor cost
* Welding to Thin & Long Product
* Fast Welding Time 0.1-3 Seconds.
* Easy to operate

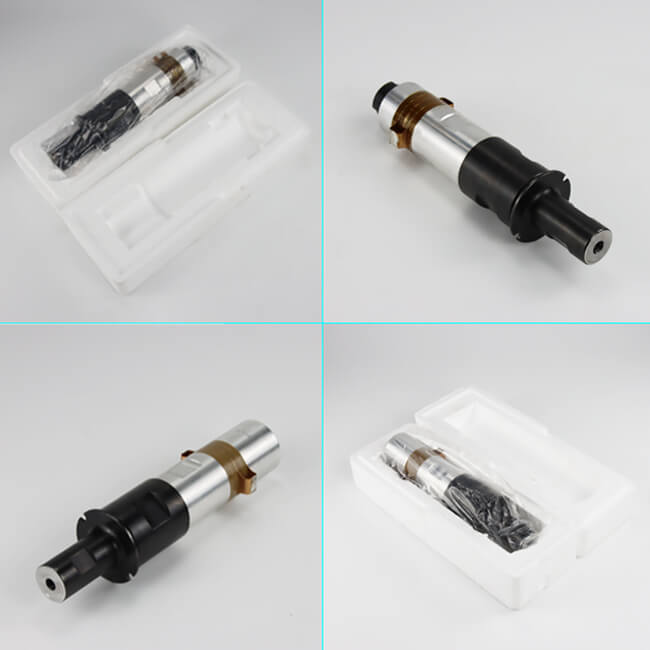

Detailed Photos:
