20KHz Digital Ultrasonic Continuous System for Face Mask Body
Welding

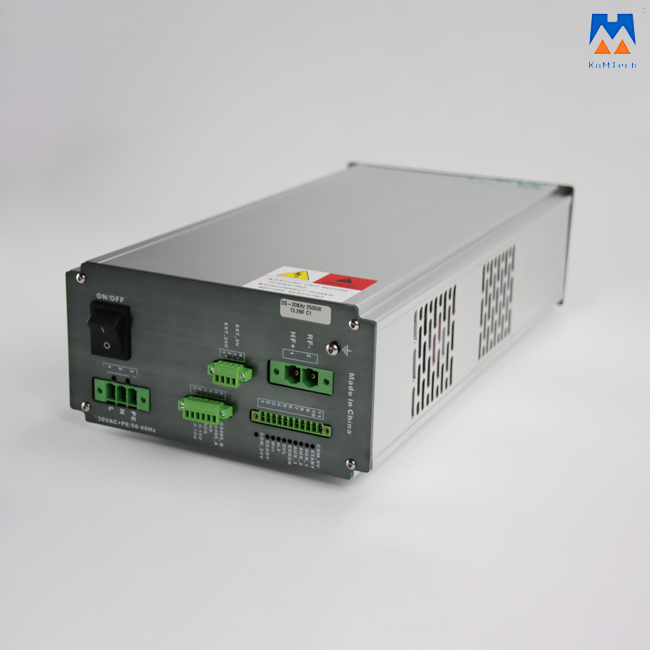

This is the Digital ultrasonic generator,which adopts the advanced
microcomputer control technology and new circuit geometry, According to applications, continuous fabric welding and
cutting and intermittent plastic welding are available, and
different powers are available. This product has been proved in the
past 3 years the best quality of China make in this industry.
Technical Parameters:
Generator
| Dimension | Length 400mm×Width 195mm×Height 98mm |
| Net weight Of Main Body | 7 Kg |
| Frequency Range | 19.40-20.20kHz |
| Output Power | 2500W |
| Voltage | 220V+-10% |
| Welding Mode | Pause welding/continuous Welding |
| Type | horizontal and verticle type optional. |
| Function | Real-time frequency automatic tracking function |
| Amplitude compensation |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection |
| Transducer voltage protection |
| Welding Time | adjustable |
| Working Frequency (options) | 15KHz/20KHz/28KHz/30KHZ/35KHz/ |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
Transducer
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument
such as a resistance characteristic analyzer |
| Capacitance | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Maximum Power | P:2000W,Machine manufacturers may have different regulations for
the nominal power of machines for different purposes.
In other words, the same transducer may have different nominal
power for different machines.
Therefore, when choosing an ultrasonic transducer, you can only
refer to its maximum power |
| Working Mode | continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster. |
| Net weight of the main body | 2.6KG |
Horn
| Dimension | Length 110mm ×Width 20mm |
| Frequency | 20KHZ |
| Net weight of the main body | 3.1KG |
| Material | steel |
Flange
| Frequency | 20KHZ |
| Inner Diameter | 33mm |
| External Diameter | 106mm |
| Thickness | 30mm |
| Material | Steel |
| Net weight of the main body | 1.1KG |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by
yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just
deliver them within 7 days, while, 15-25 days for large orders and
customized production line.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS),
heavyweight more than 50kg, we suggest to use sea freight LCL or by
air
3. What's the warranty of your ultrasonic sets?
One-year Warranty with no human damage.
In this period factory, will be responsible for repairing it for
free or the factory will send the new parts to the customer instead
of the broken parts for free. After warranty time, the factory will
repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your
name, email address, company name, and website)
5. Can we agent your ultrasonic sets in our country or city?
Of course. We are looking for a sole agent in the country who has
the willingness to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
7. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
8. could you make it according to our special requirements?
Of course, we can do that. Please tell us your idea or your
application.
9. How about the quality?
We have exported to many other customers from all over the world,
the feedback is good, quality ranks first in our company.
