    Piezoelectric Ceramic Discs For Ultrasonic Convertor RSP50 PZT8

    Ask Lasest Price
    Brand Name : RiSun
    Model Number : KM-RSP50
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 30000pcs/Month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Piezoelectric Ceramic Discs For Ultrasonic Convertor RSP50 PZT8

    Piezo-electricity Effect And Inverse Piezo Effect


    The piezo-electricity effect is based on the ability of certain crystals of the piezoelectric ceramic to generate an electrical charge by mechanical pressure or tension. And, these crystals will contract or expand when exposed to an electric field – which is called the inverse piezo effect. The polarity of the charge depends on the orientation of the crystal relative to the direction of the pressure.


    Piezoelectric Ceramic Discs For Ultrasonic Converter RSP50 PZT8


    Piezoelectric ceramic is the core element of the vibration of the ultrasonic transducer. Its performance will directly affect the output performance of the ultrasonic system. We can supply a wide selection of high-quality ceramic elements with goos dielectric temperature stability, low dielectric loss, and good consistency. This is the RSP50 pzt8 piezoelectric ceramic discs series for ultrasonic welding.


    Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.


    Technical parameters:


    Product Name20KHz PZT8 Piezoelectric Ceramic Discs
    Frequency20KHz
    Outer Dimension50mm
    Inner Dimension20mm
    Thickness6mm/5mm
    SensitivityHigh
    Measuring MediumSolid
    Usage

    ceramic discs for ultrasonic welding convertor


    Features:


    * Good stability

    * High sensitivity

    * Low heat

    * High vibration efficiency


    Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:


    Application:

    Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.


    If you need other sizes of the piezoelectric ceramic discs, feel free to contact us.

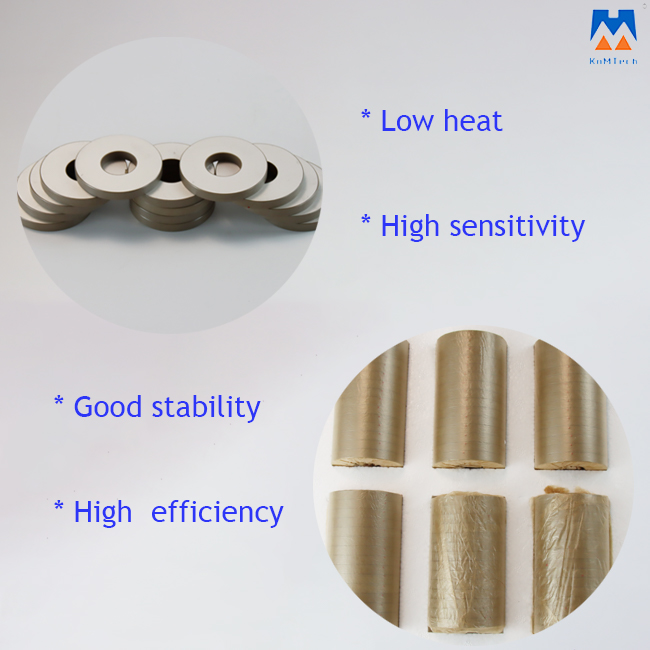

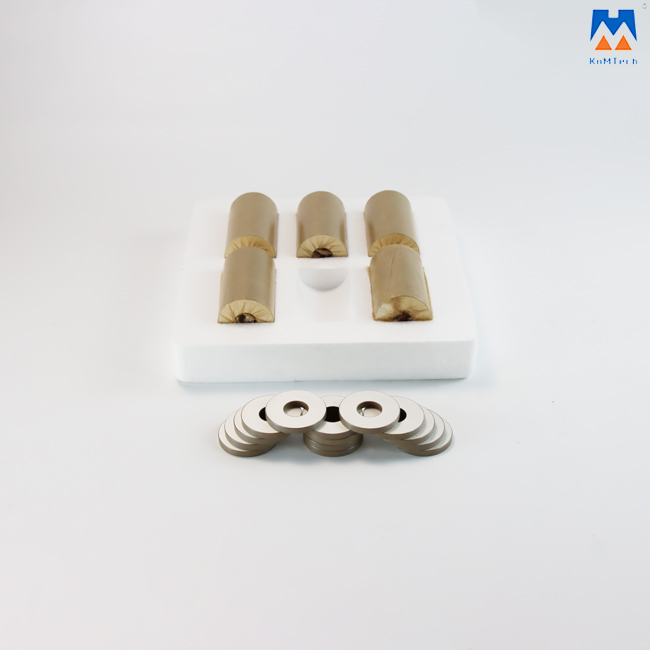

    Detailed Photos:


    Quality Piezoelectric Ceramic Discs For Ultrasonic Convertor RSP50 PZT8 for sale
