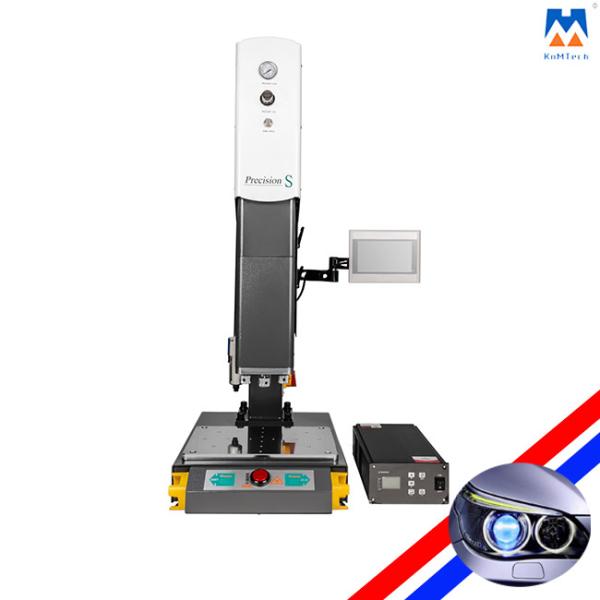

Ultrasonic Welding Equipment Plastic For Automative Car Lights

Ultrasonic welding is a fast, clean and reliable assembly process, with the following advantages:

1) Fast welding speed and high efficiency. Ultrasonic welding can be completed within 0.1 ~ 0.5 s.
2) Low cost. Ultrasonic welding is a very economical way to assemble plastic parts because of its high efficiency, low labor cost, and the use of a lot of fixtures, adhesives, or mechanical fasteners are eliminated.
3) High strength. Ultrasonic welding can almost reach more than 80% of the strength of plastic parts;
4) Reasonable plastic parts design can make ultrasonic welding to achieve waterproof effect;
5) Good surface quality, beautiful solder joints, can achieve seamless welding;
6) Simple process, simple operation, can realize automatic welding;
7) Stable quality, stable and reliable product quality, suitable for mass production;
8) Ultrasonic welding process is clean, stable, reliable, and low energy consumption.

Product Name	Ultrasonic Welding Equipment Plastic PTS2000
Voltage	AC 220V 50/60HZ
Dimensions (WxHxD) [mm]	700*880*2000
Weight [kg]	280KG
Operating frequencies* [kHz]	15KHZ
Welding head operating stroke [mm]	100mm
Air pressure rate[MPa]	0.2-0.7MPa
Power [W]	2600W
Processor	4-core, 32-bit processor
Time Mode	0.001-9.999 Seconds
Welding amplitude	10%-100% adjustable(1% accuracy)
Welding mode	Time, Energy, grounding
Energy Mode	Integrated
Temperature	-10ºC--40ºC

Different models are available:

Frequency	Power	Work Stroke	Lifting Mode	Voltage	Air Source
15kHz	2600W	75MM	electric control	220V±10%	2kgf-8kgf
15khz	3200W	75MM
15khz	4200W	100MM
20kHz	2500w	75MM
20kHz	3000w	75MM
30KHz	1200W	75MM
35KHz	1200W	75MM
40KHz	800W	75MM
Operation interface:7 inches touch screen

As the backbone of the ultrasonic welding machine products, this series of products integrate a variety of precision control techniques, including welding machine balancing system/Horizontal adjustment system, linear slide rail lifting system, micrometer positioning system, mechanical pressure sensors, to meet the requirements of the complex welding work environment and diverse needs of customers.

Features:

1. The ultrasound welder has three welding modes: time, energy, grounding;

2. With two trigger Modes: delay, pressure;

3. Three Amplitude managements: staged amplitude, adjusted amplitude, compensated amplitude;

4. Quality management: time, energy;

5. Safety managements: power overload protection, supply voltage protection, transducer voltage protection;

6. This ultrasonic plastic welding machine is stable with high performance.

For more details about our ultrasonic plastic welders, welcome to click the catalog below:

Catalog of Ultrasonic Welding Press.pdf

Application:

Warehouse:

Incorporated in 2015, K& M Technologies Ltd is one-stop solution provider in plastic welding business, especially in ultrasonic plastic welding, ultrasonic non-woven fabric sealing and cutting, hot plate welding, water filter welding lines...

From June 2021, We started the cooperation with a famous brand Dongho Ultrasonics, and co-established a new company Sincere Sonics to handle the overseas market of Dongho brands ultrasonic welding machines.

We have the professional team for the design of the equipment based on over 25 years' experience of the main staff in this industry.

We have sold to more than 100 countries in the world in the past years, including coutries from Asia, Europe, South America, North America, Oceania and Africa.

Our product series include QD series, ME series, SS series and Dongho Series for ultrasonic welding machines; AY series for filter welding machines and hot plate welding machines.

Now we have agents in Turkey, India, Ukrane, Maylasia, Vietnam and we are looking for more agents or distributors around the world who can take good care of the aftersales services in the country or territory.
