20KHz Portable Ultrasonic Spot Welding Machine for plastic or
fabric welding
What is ultrasonic welding?
The ultrasonic welding machine uses two welding objects' welding
surface friction to reach the temperature of the object itself
melting point, so that the interface of the object melts quickly,
and then fills in the gap between the interface. when the vibration
stops, at the same time, under a certain pressure, the object cooling and shaping, then achieve high-density welding.
This is the portable ultrasonic spot welding machine, with the character of compact and light, high precision, high
power, suitable for plastic welding and fabric welding(such as face
mask welding), very popular in the industries and household.
Technical parameters:
Ultrasonic spot welding press
| Voltage | AC 220V 50/60Hz |
| Weight [kg] | 12KG |
| Operating frequencies* [kHz] | 20KHZ |
| Welding head operating stroke [mm] | OD=30mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Power [W] | 2500W |
| Temperature | -10ºC--40ºC |
The ultrasonic generator
| Dimension: | Length 340mm×Width 210mm×Height 94mm |
| Net weight of the main body: | 4 KG |
| Frequency: | 20KHZ |
| Output power: | 2500W |
| Voltage: | 220V+-10% |
| Material: | Iron |
| Sine harmonic wave parameter: | ≥97% |
| Input power factor: | ≥80% |
| Working Mode: | Pause Welding |
| Working frequency: | 20KHz |
| Working power supply: | AC220V 50Hz/60Hz |
| Scope of mould frequency: | ±400HZ |
| Automatic frequency chase precision: | ±5HZ |
| Power steady ratio: | ≤ 5% |
| When remote terminal dynamic responding: | ≤10ms |
| Over-current protects current: | 15A |
| Time of over-current protection: | 100ms |
Application:
| Electronics | Switches and sockets, remote control, electronic swatter,
pseudo-imitation caps, etc |
| Home appliances | Steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy | Aquatic life video game, children dolls, plastic gifts, etc |
| Packaging | Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical | Testing Equipment,filters,I-V units,insulated trays..etc. |
FAQ:
1. How long is your warranty?
Lasts for 12 months.
2. How could I make the payment?
Paypal, T/T, Western Union are the most popular methods.
3. Can we agent your ultrasonic welding machines in our country or
city?
Of course. We are looking for a sole agent in the country who has
the willingness to cooperate with us for a long business term.
4. Could you make the welding machine according to our special
needs?
Of course, we can do that. Please tell us your product and
application.

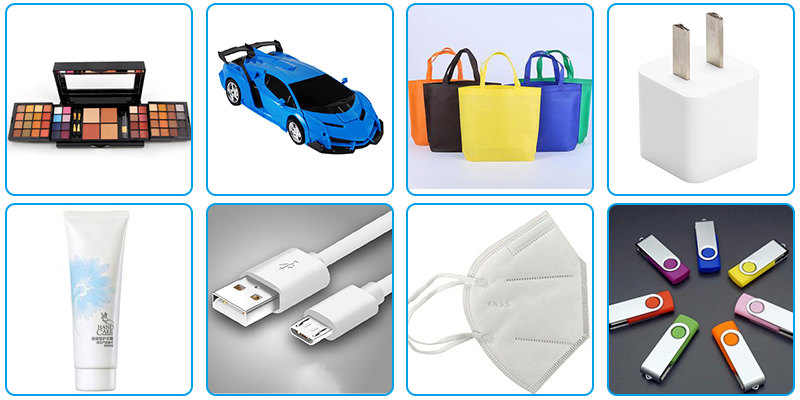

Application cases:
Warehouse:
