Brandson type ultrasonic converter aluminum housing high power

Ultrasonic converter plays a vital role in the ultrasonic system and it to some degree decides the final welding result of the working piece. The ultrasonic converter K&M tech provides is of good quality, the ceramics we provide have good features: high efficiency, big amplitude & power, good heat durability. During the use of the ultrasonic converter, it is normal to get heat, and there are mainly three reasons:

The first is that the welding parts will heat up or the material processed by the ultrasonic wave will heat up, the welding horn or the amplitude transformer will heat up when working for a long time, the heat will be transferred to the transducer. The other is the power loss of the transducer itself. Since you can't do 100% energy efficiency, that part of the energy loss must be converted into heat. Temperature rise will also lead to the change of ultrasonic transducer parameters, gradually offset the best matching state, more seriously, the temperature rises will lead to the deterioration of the performance of piezoelectric ceramic wafers. This, in turn, causes the ultrasonic transducer to work worse and heat up faster, a vicious cycle. So we must give ultrasonic transducer good cooling conditions, generally room temperature air cooling; If necessary, cold air cooling can also be used. Under normal conditions, the temperature rise caused by these two points is also normal. Under normal cooling conditions, there will be no big problem.

Technical parameters:

Applied Range:

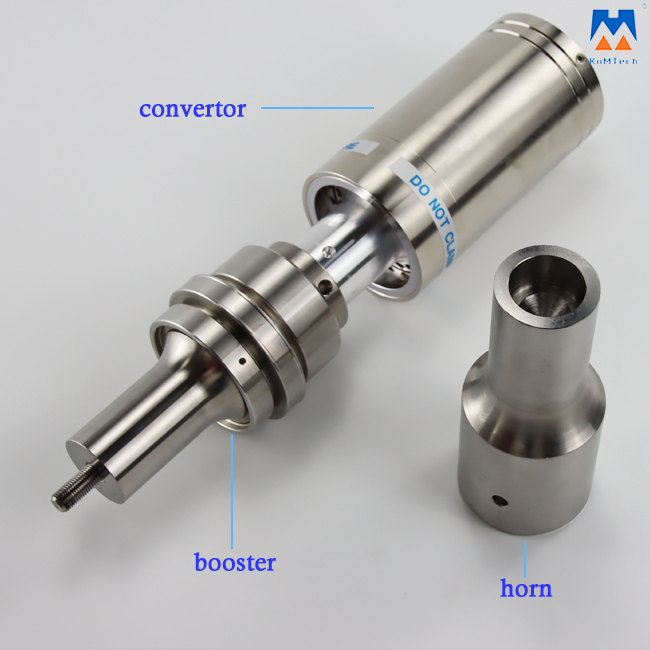

Ultrasonic generator, ultrasonic transducer, ultrasonic horn and ultrasonic flange constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries, such as non-woven fabric ultrasonic welding, plastic ultrasonic welding, ultrasonic sealing and cutting and so on.

Detailed Photos:

Incorporated in 2015, K& M Technologies Ltd is one-stop solution provider in plastic welding business, especially in ultrasonic plastic welding, ultrasonic non-woven fabric sealing and cutting, hot plate welding, water filter welding lines...

From June 2021, We started the cooperation with a famous brand Dongho Ultrasonics, and co-established a new company Sincere Sonics to handle the overseas market of Dongho brands ultrasonic welding machines.

We have the professional team for the design of the equipment based on over 25 years' experience of the main staff in this industry.

We have sold to more than 100 countries in the world in the past years, including coutries from Asia, Europe, South America, North America, Oceania and Africa.

Our product series include QD series, ME series, SS series and Dongho Series for ultrasonic welding machines; AY series for filter welding machines and hot plate welding machines.

Now we have agents in Turkey, India, Ukrane, Maylasia, Vietnam and we are looking for more agents or distributors around the world who can take good care of the aftersales services in the country or territory.
