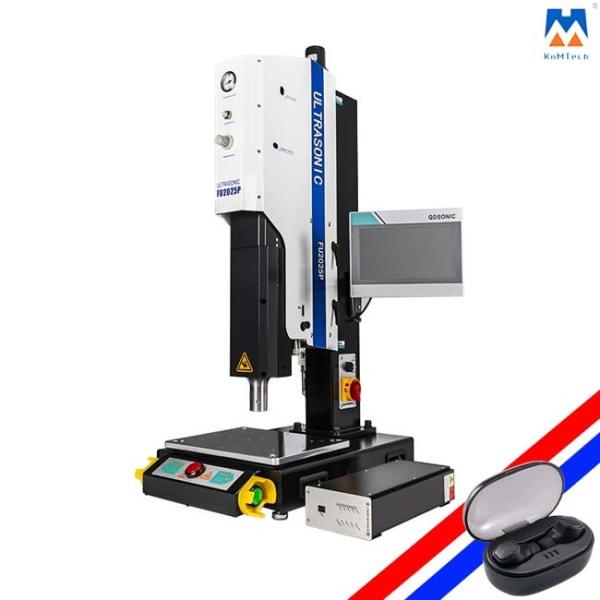

High Precision Ultrasonic Welder 35KHz 1200W For Bluetooth Headset
Welding
This ultrasonic welding machine has a standard intelligent circuit
system, pressure sensor, 10 inches outer touch screen; Equipped
with a welding table balance system, micrometer-scale positioning
system, linear sliding rail lifting system, grating ruler
measurement positioning system; With more powerful welding
management and data management system, the whole process control
before, middle and after welding can be realized. It is fully
qualified for the welding task of more complex and precise welding
parts in the current manufacturing field and can meet the diverse
needs of customers.
The ultrasonic welding of the Bluetooth headset shell of the mobile
phone can be carried out by using this ultrasonic welder. The shell
components of the Bluetooth headset of the mobile phone are
installed and welded. The ultrasonic plastic welding effect is
firm.
After ultrasonic sealing and welding, the strength and appearance
of the shell of the BlueTooth headset of the mobile phone meet the
customer's standard, and the protective film of ultrasonic welding
is needed to prevent welding damage.
Technical parameters:
| Product Name | High Precision Pneumatic Ultrasonic Welder |
| Frequency | 35Khz |
| Power | 1200W |
| Language | Chinese/English |
| Work Stroke | 100mm |
| Voltage | 200-240VAC stable output |
| Welding amplitude | 10~100% adjustable (1% accuracy) |
| Standardized configuration for this model | Pressure-trigger mode |
| Standardized configuration for this model | Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
| Linear guide blocks are used for welding movement and horn
adjustment |
| Ports | Enough connection terminal ports for easy automation control |
| Interface | 10-inch Human-machine interface |
| Mode | Welding mode: | Time, Energy, Contact shut-off, Absolute Depth, Relative Depth,
pressure trigger |
| Trigger mode: | Delay, Pressure, Depth |
| Air-pressure mode |
| No-fault power |
| 4-core 32-bit processor |
| 485 communications |
Application:
Ultrasonic plastic welding can be applied to a wide range of
industries, such as the automobile industry, medical industry,
electronic industry, food packaging industry, toy industry, and so
on.
FAQ:
1. How about your delivery time?
Usually, we have some stock for trial or small orders, so just
deliver them within 7 days, while, 15 days for large orders and
customized production lines.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS),
heavyweight more than 50kg, we suggest to use sea freight LCL or by
air
2. What's the warranty of your ultrasonic welding machines?
One-year Warranty with no human damage.
In this period factory, will be responsible for repair fixing it
for free or the factory will send the new parts to the customer
instead of the broken parts for free.
3. Can we agent your ultrasonic welding machines in our country or
city?
Of course. We are looking for a sole agent in the country who has
the willingness to cooperate with us for a long business term.
4. Can I add my logo to the ultrasonic welding machines?
Yes, OEM and ODM are available for us, please send us the artwork.

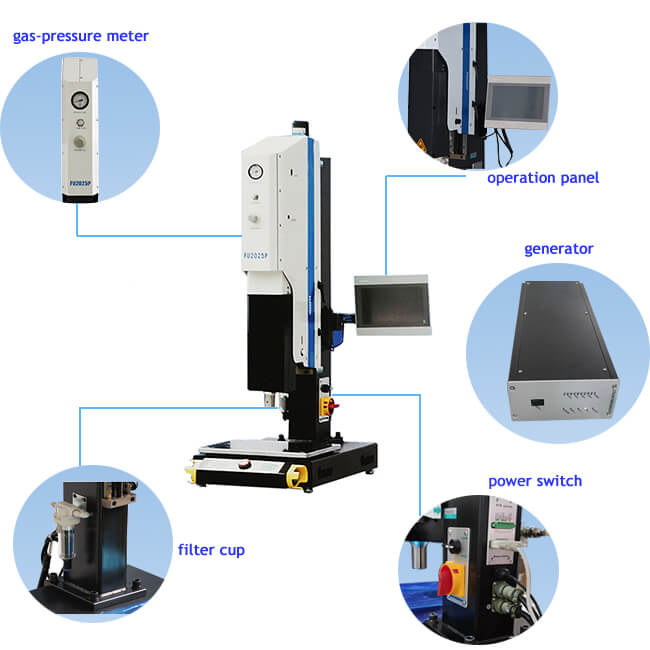

Detailed Photos:
