35kHz Ultrasonic Wire Welding and Splicing Machine
The ultrasonic metal welding machine frequency is 35kHz/40kHz, the
welding power is large, its advantage is that it can weld metal
products together without changing the metal material organization,
its welding temperature is low, welding time is short, welding
conductivity is strong, with high welding efficiency and low use
cost.
The equipment adopts aviation aluminum alloy material structure
design, loaded with high precision distance and pressure sensing
system, precision control and monitoring of welding position and
pressure; At the same time with intelligent precision proportional
valve pneumatic integrated system, to ensure the stable output of
welding pressure; The ultrasonic core parts are imported from
Germany, and the welding output is strong and stable. In terms of
welding function, the equipment has 4 kinds of triggering
ultrasonic mode and 6 kinds of welding mode, which can meet various
welding requirements of customers. At the same time, the
super-intelligent system has 6 specifications of up and down line
quality monitoring and parameter curve, at any time to monitor the
welding quality, data network transmission function, providing
customers with intelligent quality management.
Technical parameters:
| Item | Ultrasonic metal welding Machine |
| Voltage | 200-250V AC,50/60 Hz |
| Frequency | 35kHz/40kHz |
| Power | 1200W/800W |
| Max working stroke | 30 mm |
| max input air pressure | 8 Bar |
| max output pressure | 1200N |
| Dimension | 450 * 510 * 550 mm |
| weight | about 45KG |
Features:
| Motion control system | pneumatic control |
| Frequency adjustment | Auto-tuning frequency tracking |
| linear encoder | digital display |
| Position accuracy(mm) | precision ±0.02mm |
| cylinder stroke (mm) | φ40*30mm |
| Air pressure control | proportional valve |
| Generator alert | abnormal frequency/overload current/overload power/too high
temperature |
| Relative humidity | 30%-95% |
| Welding method | Time, Energy, Power, Relative Position, Absolute Position, Peak
Pressure |
| Max Welding time(S) | 5S |
| Air pressure range(mpa) | 0.05mpa≤0.8mpa |
| Quality control | Time, Energy, Power, Relative Position, Absolute Position |

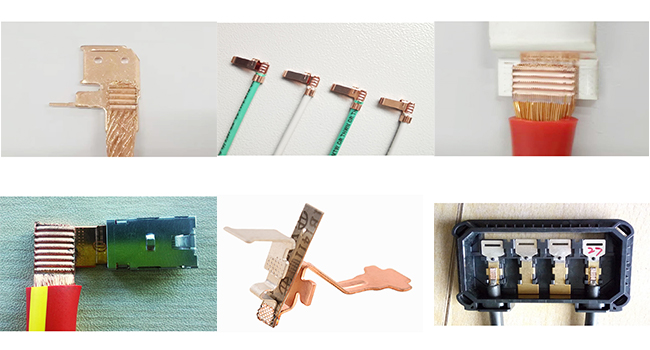

Application:
It can also be used in metal wares, battery, electronics,
automobile, motor and electrical appliance industries, to weld
aluminum strip to aluminum cover, nickle strip to copper foil
(multiple spot), aluminum strip to aluminum foil (strip shape),
aluminum strip to aluminum foil (multiple spots), nickle strip to
aluminum strip, nickle strip to copper foil, nickle strip to
multiple-layer copper foil,aluminum strip to multiple-layer
aluminum foil, aluminum case to alu-nickle strip, nickel strip to
multiple-layer copper foil, aluminum strip to multiple-layer
aluminum.
Automotive, electronics, home appliances, industrial components,
electrical wiring components, lighters, toys, gadgets, medical,
personal appliances and more.
Our Services:
1. Reliable Production Line
Our production line is stable and trustworthy.
2. Well-experienced R&D Engineer
If you have any technical questions, please don't hesitate to
contact us.
3. Efficient Working Team
We have a mature, efficient, and well-cooperated team.
4. Competitive Price
We promise to give our clients the most competitive price
5. Constantly Updated Products
New products will be launched from time to time, According to the
development schedule
6. Customized Product Service
If you have other customized requirements, please communicate with
us for further details.
1. Can we agent your metal welding machines in our country or city?
Of course. We are looking for sole agents who are willing to
cooperate with us for the long business term.
5. How about payment?
100%T/T in advance before shipment.
2. Could you make the metal welding machine according to our
special requirements?
Of course, please tell us your idea or your application.
Detailed photos:
